   Polypropylene domestic sewage system
General information
Polypropylene sewer systems have a range of undeniable advantages when compared to systems made of conventional materials, such as cast iron, as well as systems made of other polymer materials (polyvinyl chloride (PVC), polyethylene (HDP).

Material
SINIKON polypropylene sewage pipes are manufactured by extrusion, and SINIKON fittings are manufactured by pressure casting from polypropylene homopolymer (type 1) РР-Н.  The basic properties of the material are specified in the table.
Name   Measuring Unit              Method
Density         gr/cm3      0,9-0,95     UNI EN ISO 1183-2
Linear expansion coefficient
        mm/m°С      0,11        UNI 8318
Melting point      °С      >160         EN 728
Thermal conductivity         Wt/m°С      0,26         DIN 52 162

Advantages of polypropylene systems are the following:
• increased resistance to most chemical substances;
• stablility;
• smooth inner surface prevents scale formation, graning unobstructed flow;
• lightweight, which significantly reduces expenses for storage and transportation;
• flare  joint  with  pre-installed  O-ring  significantly  reduces mounting time, and grants  higher reliability with hermetic property of the connection;
• upper limit of acceptable operating temperatures (80˚С) significantly outperforms acceptable temperature limits for PVC and HDP pipes (60˚С);
• the widest range of fabricated shapes allows implementation of any design solution.

Purpose and application area
Polypropylene sewage pipes and fittings  are designed to be used in household sewage system of buildings with maximum temperature for base flows of up to 80˚С and short term (within 1 minute) flows with a temperature of up to 95˚С. They may be used for removal of chemically aggressive waste with рН values ranging between 2 (acid environment) and 12 (alkaline environment). When pipes and fabricated shapes are used to transport untreated industrial waste, the chemical stability of the pipe material shall be tested.

Pipes and fittings are manufactured in accordance with European Regulation EN1451. All products have valid GOST R compliance certificates for mass production and permits to use conformity signage for voluntary product certification.

Application area:  B - inside the building. Service life of pipelines is not less than 50 years subject to compliance with current regulations and manufacturer's recommendations.

Colour
Grey metallic

Pipe geometry

    Settings  DN/OD 32 (mm)     DN/OD 40 (mm)      DN/OD 50 (mm)      DN/OD 75 (mm)      DN/OD 110 (mm)
 Outer diameter EN 1451 Dmin 32.0
Dmax 32.3
Dmin 40.0
Dmax 40.3
Dmin 50.0
Dmax 50.3
Dmin 75.0
Dmax 75.4
Dmin 110.0
Dmax 110.4
   Wall Thickness by EN 1451 min 1.8
max 2.2
min 1.8
max 2.2
min 1.8
max 2.2
min 1.9
max 2.3
min 2.7
max 3.2

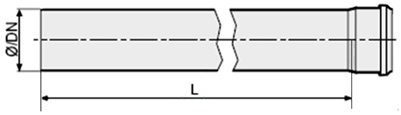

    Pipe length by EN 1451          length.jpg

Sealing
Double-lipped sealing from soft styrene butadiene rubber (SBR 40±5 IRDH) with plastic (polypropylene РР) spacer. It is designed for plastic pipes and fittings made of PP and PVC based of EN 1451-1 and EN 14-1-1 Regulations corresponds to the requirements of EN 681-1 WC/WCL and DIN 4060. Manufacturer: М.O.L. Gummiverarbeitung GmbH & Co.

Coupling technique
Flare joint. Push-fit connection does not require any special tools or machines.



 лого_комфорт.jpg                                                                                                                 комфорт.jpg
 Low-noise domestic sewage system

General
One of the most significant factors for the quality of a sewage system is its noise level. Noise level in premises has a considerable impact on people’s physical and psychological condition. This is why developed countries place great priority on noise control. In accordance with DIN 4109 (Noise protection in multi-storey buildings), noise level must not exceed 30 dB, and according to the more strict regulation VDI 4100, it must not exceed 25 dB. Russian Regulations SN 2.2.4/2.1.8.562-96 “Noise at work places, in residential and public buildings and at the territory of housing development” stipulate acceptable noise level at night time (from 23.00 till 7.00) of up to 30 dB. In most cases, such noise level is not possible even in properly designed sewage systems using regular plastic pipes. This is why, in facilities with exclusive standards for living comfort, it is recommended to use a SINKON Comfort Plus low noise domestic sewage system.

Noise level
To measure noise level, comparative tests of the SINIKON Comfort system (Russia) and a regular grey sewage system were conducted. The tests were conducted at the Acoustics Department of Lomonosov Moscow State University in November 2010. 3-storey long stand-pipe with all elements was selected for the test. Results showed that under water flow of 4 litres per second, noise level in SINIKON Comfort was 4 dBA lower (1.5 times) than in a standard polypropylene system. When water flow was reduced to 0.35 litre/sec, the mentioned                                                        difference increased from 4 dBA to 7 dBA (2.2 times).

Purpose and scope of application

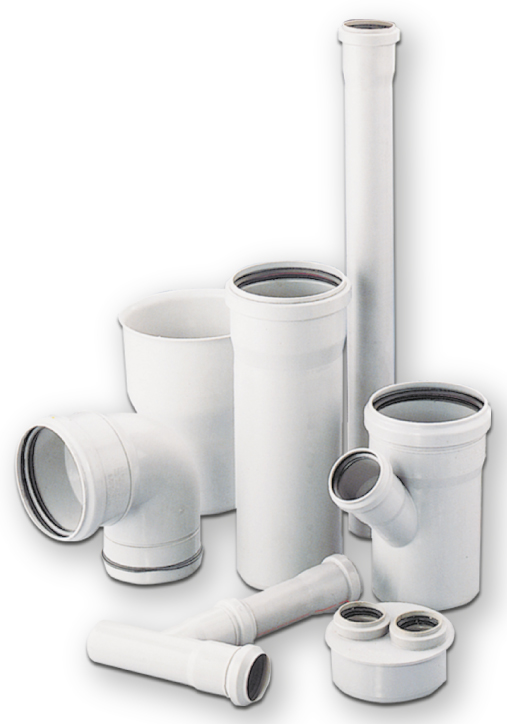

SINIKON Comfort Plus polypropylene sewage pipes are used for installation of gravity-feed pipeline systems for domestic household sewage. SINIKON Comfort Plus sewage pipes completely correspond to CR 40-102-2000 and CR 40-107-2003. In domestic sewage pipeline systems it is permitted to transport wastes with a  maximum  temperature  of  80˚С, and for short-term (within 1 minute) wastes, up to a temperature of 95˚С. Waste waters may have a рН value between 2 (acid environment) and 12 (alkaline environment). When pipes are used for sewage systems of untreated industrial waste, the chemical stability of the pipe material shall be tested.

Service life of pipelines  is not less than 50 years.

Colour:  white-grey

Material
SINIKON Comfort Plus  polypropylene sewage pipes are manufactured by extrusion from polypropylene homopolymer (type 1) РР-Н with mineral additives and have increased wall thickness as compared to standard  polypropylene  pipes (from 2.0±0.4 mm to  3.8±0.4 mm  for DN 110 pipe). Basic properties of the material are specified in the table:

Name     Measuring Unit        Quantity         Method
Density         gr/cm3        up to 1.3      UNI EN ISO 1183-2
Linear expansion coefficient         mm/m °С      0,11      UNI 8318
Thermal conductivity       Wt/m °С      0.26      DIN 52 162
Breaking elongation         %         >100      ISO 6259-3

  Pipes Geometry

   Settings     DN/OD 40 (мм)        DN/OD 50 (мм)        DN/OD 110 (мм)
 Outer diameter by EN 1451 Dmin 40.0
Dmax 40.3
Dmin 50.0
Dmax 50.3
Dmin 110.0
Dmax 110.4
Wall Thickness by EN 1451 min 2.0
max 2.4
min 2.0
max 2.4
min 3.8
max 4.3
    Pipe length by EN 1451            length.jpg

Reinforced fittings

Settings  DN/OD 110 (мм)
Outer diameter by EN 1451 Dmin 110.0
Dmax 110.4
Wall Thickness by EN 1451 min 3.4
max 4.0


Sealing
Double-lipped sealing from soft styrene butadiene rubber (SBR 40±5 IRDH) by stretching ring. It is designed for plastic pipes and fittings made of PP and PVC based of EN 1451-1 and EN 14-01-1 regulations, it corresponds to requirements of EN 681-1 WC/WCL and DIN 406. Manufacturer – M.O.L. Gummiverarbeitung GmbH & Co.

Coupling  technique
Flare joint. Push-fit connection does not require any special tools or machines.
